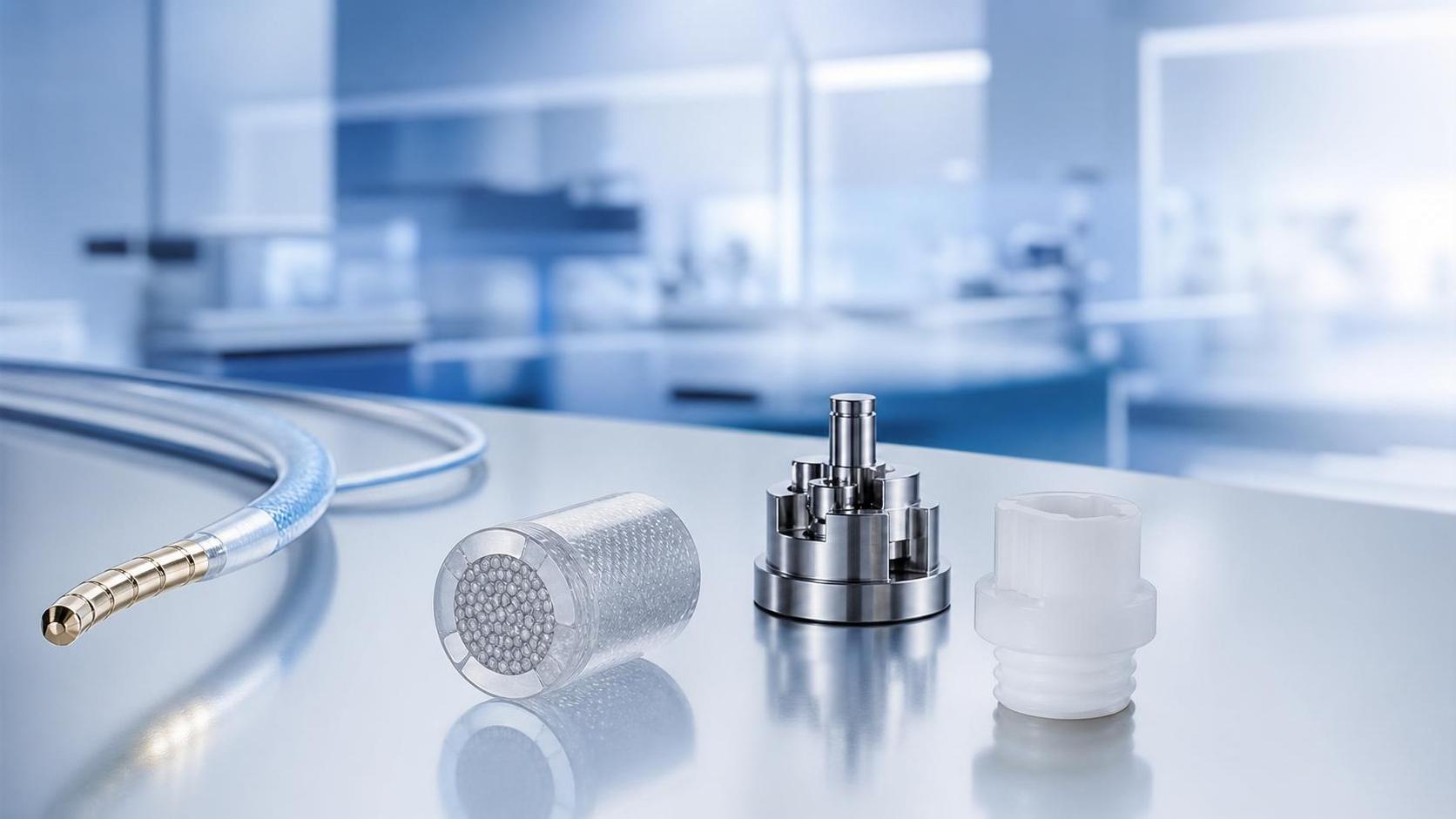

How to Choose Radiopaque Materials for Catheter Design

In catheter design, visibility under fluoroscopy is never an isolated feature. It sits inside a broader decision framework where imaging clarity, shaft behavior, patient safety, manufacturability, and compliance all interact.

That is why catheter material selection radiopaque has become a recurring evaluation point across cardiovascular, neurovascular, and minimally invasive device programs. A material choice that improves contrast may also change stiffness, bonding, extractables, or process stability.

For organizations tracking high-value consumables, this topic matters beyond formulation science. It affects design transfer, regulatory evidence, and long-term commercial positioning in a market shaped by Class III scrutiny and cost pressure.

Why Radiopacity Matters in Catheter Design

A catheter must be seen accurately during placement, navigation, and therapy delivery. In tortuous anatomy, even small visibility gaps can reduce procedural confidence or increase repositioning time.

This is especially relevant in interventional cardiology and neurovascular access. Thin-wall devices operate in small, moving, and highly sensitive pathways where fluoroscopic recognition supports both precision and safety.

Radiopacity can be built into the polymer matrix, added locally through markers, or created through hybrid constructions. Each path answers a different clinical and engineering question.

In practice, catheter material selection radiopaque is less about finding the brightest material and more about defining where visibility is needed, how durable it must remain, and what performance cannot be compromised.

The Core Trade-Off Behind Material Choice

Most radiopaque solutions rely on high-density fillers or metal components. Both approaches increase X-ray visibility, but both can alter the behavior of the catheter in meaningful ways.

When heavy fillers are loaded into polymers, flexibility often declines. Kink resistance, elongation, burst strength, and fatigue response may shift at the same time.

Marker bands avoid changing the whole shaft, yet they introduce assembly steps. They can also affect profile, bond reliability, and transition smoothness near the distal section.

A sound catheter material selection radiopaque review therefore starts with trade-off mapping. It asks which function carries the highest risk if altered: navigation, trackability, visibility, sealing, torque, or biocompatibility.

Questions that usually define the decision

• Is full-shaft visibility required, or only distal tip confirmation?
• Will the device face repeated bending, pulsing, or torque cycling?
• Does the design depend on a soft distal segment?
• How sensitive is the process to filler dispersion and extrusion variation?
• What evidence will be needed for ISO 10993 and regional submissions?

Main Radiopaque Material Options

The market uses several established strategies. None is universally best. Suitability depends on anatomy, catheter architecture, and the amount of visibility required.

Polymer family matters as much as filler type. Pebax, polyurethane, nylon, and fluoropolymers respond differently to radiopaque additives, especially in thin walls and multilayer constructions.

For catheter material selection radiopaque, the better question is often compatibility rather than opacity alone. A moderate-opacity formulation that extrudes consistently may outperform a brighter but unstable alternative.

Where Evaluation Becomes More Demanding

Current development programs rarely assess radiopacity in isolation. They connect material choice with increasingly strict expectations for biological safety, documentation depth, and reproducible manufacturing outcomes.

This is where intelligence platforms such as IMCS have practical value. The challenge is no longer only material innovation. It is linking biocompatibility, micron-level processing, and regulatory evidence into one coherent decision package.

In Class III environments, a radiopaque additive can trigger broader review. Extractables, particulate generation, sterilization stability, and aging behavior may all need stronger justification.

Commercial pressure also changes the threshold. Under VBP and similar cost-control frameworks, a technically elegant material that causes scrap, rework, or supplier dependence may weaken the full business case.

Signals worth tracking during assessment

• Lot-to-lot consistency of the radiopaque compound
• Impact of filler on heat history and extrusion window
• Adhesion behavior in multilayer shafts or bonded assemblies
• Aging stability after sterilization and shelf-life simulation
• Supply resilience for specialty fillers or precious metal markers

Application Scenarios Change the Right Answer

Different catheter families prioritize different balances. The radiopaque strategy for a central venous catheter is rarely the same as that for a neuro-interventional microcatheter.

In neurovascular devices, distal softness and trackability are usually dominant. Localized markers or low-loading radiopaque polymers may be preferred to avoid making the tip too rigid.

In cardiovascular delivery systems, visibility at landing zones can be critical. Marker precision often carries more value than diffuse shaft brightness.

In drainage or access catheters, continuous shaft visibility may be more useful. Here, filled polymers can make sense if mechanical penalties remain acceptable.

This is why catheter material selection radiopaque should be tied to the use case early. It is difficult to rescue the wrong material architecture later with process tweaks alone.

A Practical Review Framework

A workable decision process usually combines five views: clinical need, mechanical fit, process feasibility, safety evidence, and lifecycle economics. Leaving out one of them often creates downstream rework.

1. Define the visibility target

Specify where fluoroscopic recognition must occur. Tip-only, segmental, or full-length visibility leads to very different material strategies.

2. Test mechanics in the actual geometry

A bench test on bulk resin data is not enough. Filled polymers can behave differently once extruded into thin-wall tubing or assembled into braided shafts.

3. Review biological and chemical risk early

Radiopaque systems can shift toxicological and extractables profiles. Align screening work with ISO 10993 expectations before locking the formulation.

4. Audit process robustness

Look at dispersion quality, die build-up, dimensional drift, bond yield, and marker placement repeatability. Radiopacity is only useful when production can reproduce it reliably.

5. Consider the full cost profile

Material price is only one line item. Scrap rate, qualification time, supplier leverage, and regulatory burden often matter more over the product lifecycle.

What to Do Next

The most reliable catheter material selection radiopaque process starts with a narrow design brief. Define anatomy, imaging expectation, mechanical limits, and regulatory pathway before comparing compounds or marker options.

Then build a short matrix that scores each candidate against visibility, flexibility, bonding, sterilization stability, biocompatibility, and manufacturing repeatability. This makes trade-offs visible early, when they are still manageable.

For teams navigating high-end interventional consumables, the stronger position comes from linking material science with clinical logic and regulatory realism. That broader view is where durable decisions are usually made.

A radiopaque catheter is not defined by contrast alone. The better design is the one that remains visible, navigable, safe, and manufacturable at the same time.
